5.5 KW Wall Board Roll Forming Machinery
with Automatic Length Measurement
Main feactures of machine
- The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
- All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
- We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
- It is very easy to install the equipment and suitable for producing in the factory.
- The machine has features of low noise and high efficiency.
Quick Detail
- Control system: PLC Panasonic
- Roll station: 18 stations
- Working speed: 25-30m/min
Specifications
- Main Technical Specification:
| ①Material thickness: 0.3-0.8mm
Working speed: 12-15m/min
Roll station: 18 stations (depend on the profile)
Main power: 5.5KW
Hydraulic power: 3KW
Control system: PLC Panasonic
Drive: by chain | ②Material thickness: 0.3-0.8mm
Working speed: 25-30m/min
Roll station: 18 stations (depend on the profile)
Main power: 7.5KW
Hydraulic power: 3KW
Control system: PLC Panasonic
Drive: by chain |
- Production Characteristic and use
- This kind of machine used in simple house, steel plants and other wall board production.
- The speeds up to 30m/min,greatly improve the production efficiency.
Decoiler-------guiding and feeding-----rollforming-------length meaurement------hydraulic cutting------run out table

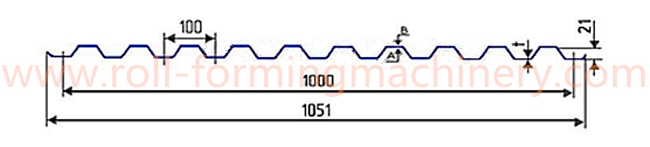

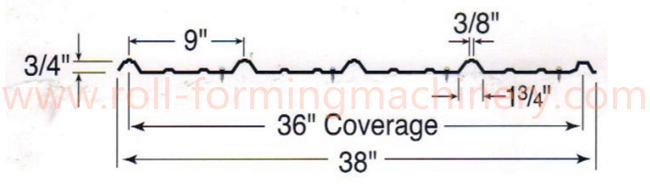

The profile drawing

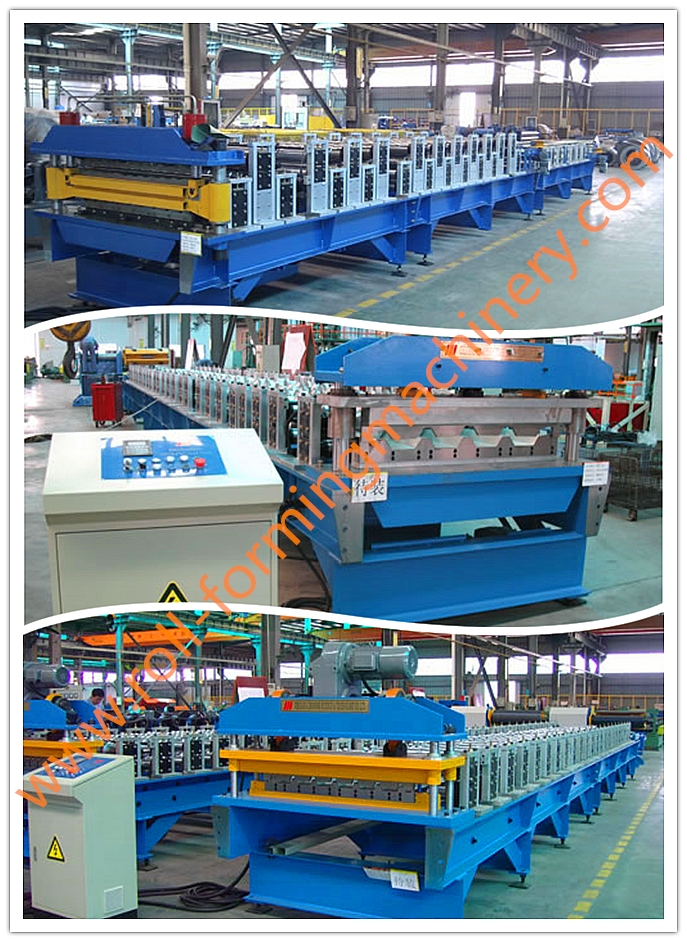

Pictures of machine
Introduction of company
We, Friendship Machinery Co.,Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.China leading expert in designing and manufacturing equipments for welding and cutting, automation system and metal works. We use and produce high-technology utilizing the most available robotic and automatic techniques. Every work is uncompromisingly designed to improve our clients' competitiveness and productivity.
We invest more on developing roll forming machine such as Metal roof & wall panels machines,C&Z purlin machines drywall Stud-track forming machines,Metal decks machines,
No-girder and Column curves forming machine,Guard rails forming machines,Downspout pipes forming machines and so on.With fast development ,very short period for construction and beautiful external appearance,as well reasonable price was occupied in the market of building industry.
