Big Size C Z Sigma Purlin Interchangeable Forming Machine with 3 profile adjustable

FRIENDSHIP MACHINERY CO,LTD
Contact Now

Big Size C Z Sigma Purlin Interchangeable Forming Machine with 3 profile adjustable

Place of Origin : China

Brand Name : Friendship

Certification : ISO

MOQ : One set

Price : as per client requirements

Packaging Details : plastic film or wooden case

Delivery Time : 30-60days

Payment Terms : T/T or LC

Supply Ability : 100 sets per months

Model Number : FSM-121

material : GI , SS

profile : C,Z,SIGMA

Speed : 15m/min

width : 450mm

height : 150mm

thickness : 6.0mm

Contact Now

Big Size C Z Purlin Interchangeable Forming Machine

/ Roll Forming Machinery

1) Production Characteristic and use:
This kind of machine can produce C, Z Sigma three profiles, through the exchange side of the roller up and down position to achieve C, Z ,Sigma purlin conversion, just need about half an hour to achieve saving time; This machine also can automatically adjust roller horizontal distance to achieve C or Z or Sigma purlins of the width with high precision, but also save time to increase production

2) Main Technical Specification:
①thickness: 6.0mm
speed: 15m/min
roll station: 18 stations (7 station for straighten)
main power: 21KW
hydraulic power: 7.5KW
control system: PLC Panasonic
Drive: by chain

Material SS.GI
Thickness 2.0-6.0mm
Speed 15m/min
Profile Three Profile adjust able
Width 150-450mm
Height 150mm

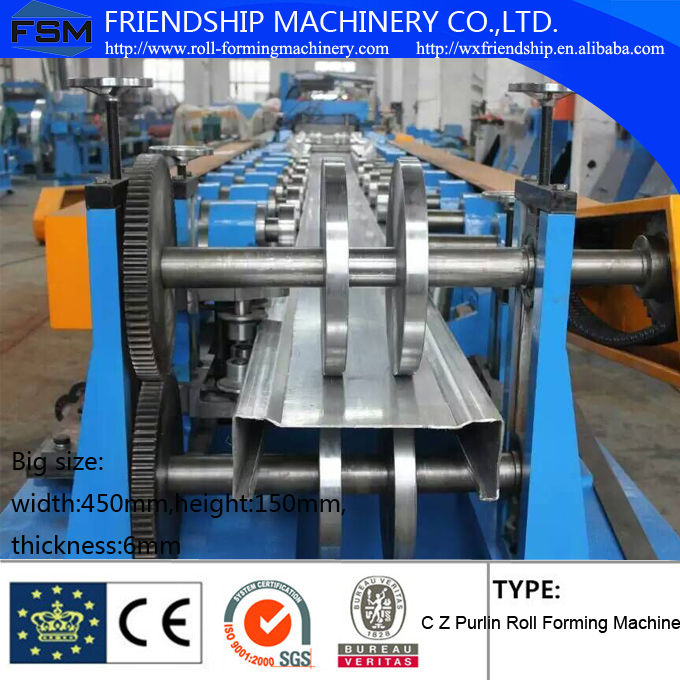

Big Size C Z Sigma Purlin Interchangeable Forming Machine with 3 profile adjustable

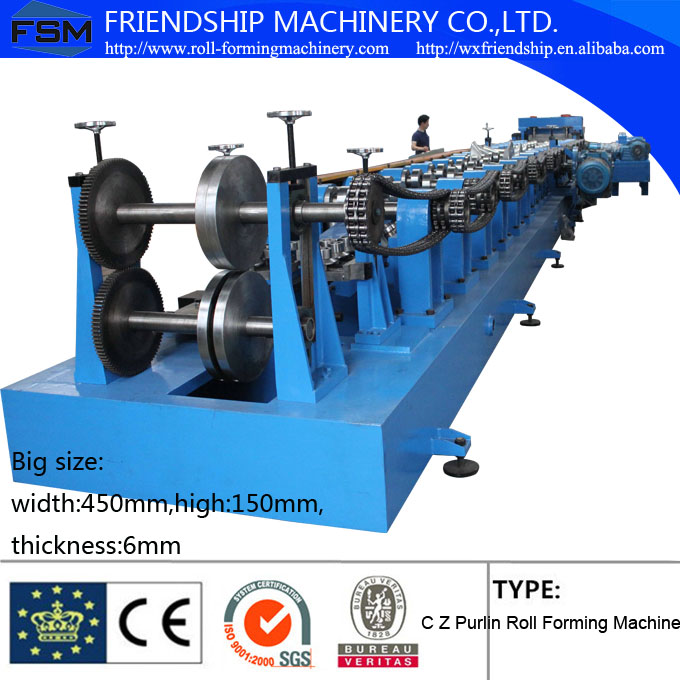

Big Size C Z Sigma Purlin Interchangeable Forming Machine with 3 profile adjustable

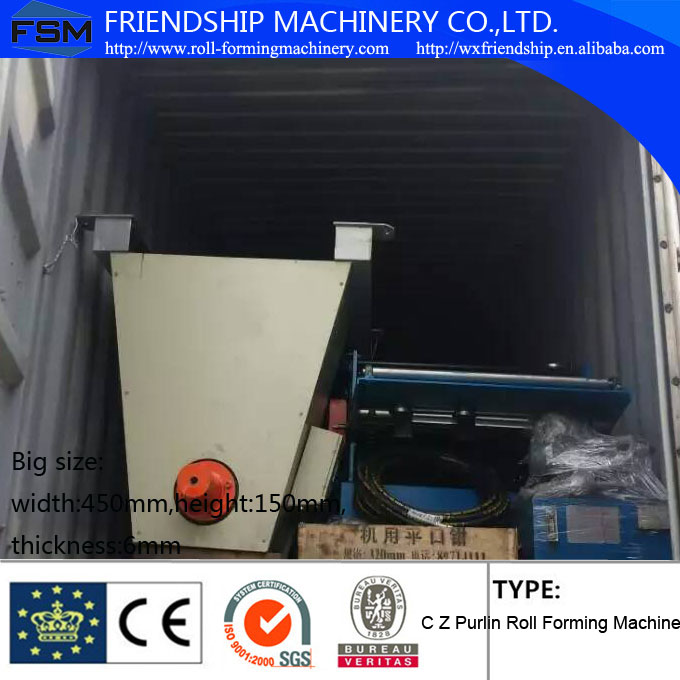

Big Size C Z Sigma Purlin Interchangeable Forming Machine with 3 profile adjustable

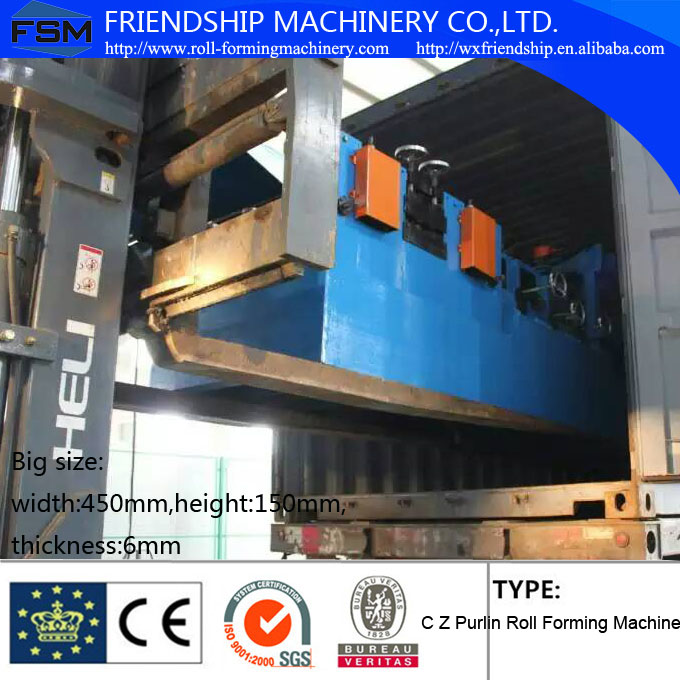

Big Size C Z Sigma Purlin Interchangeable Forming Machine with 3 profile adjustable

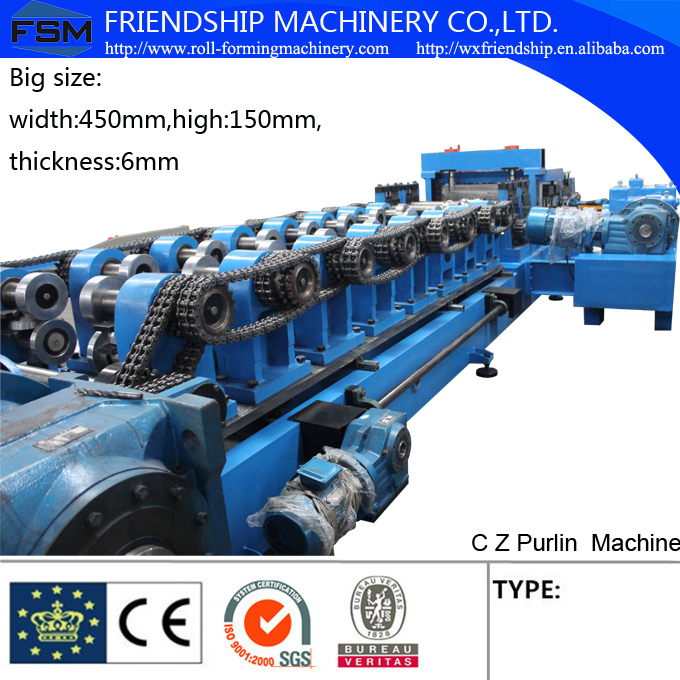

Big Size C Z Sigma Purlin Interchangeable Forming Machine with 3 profile adjustable

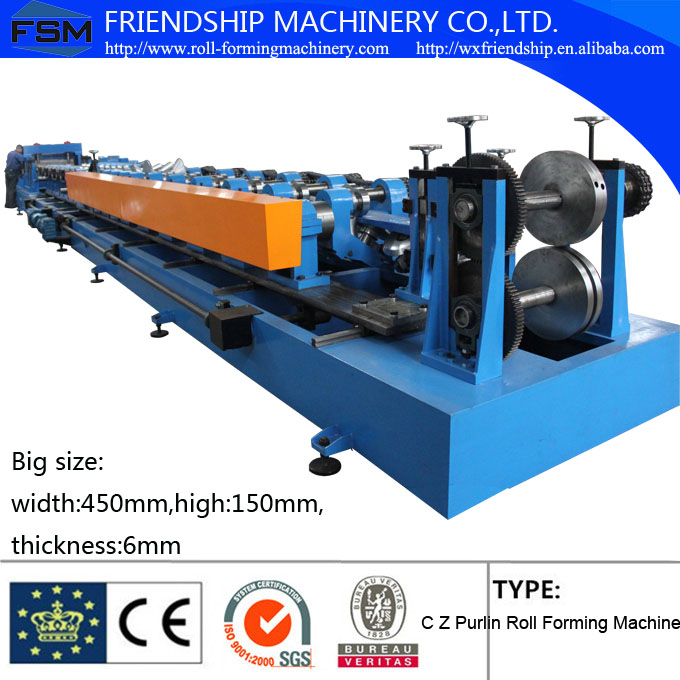

Big Size C Z Sigma Purlin Interchangeable Forming Machine with 3 profile adjustable
